TCM5 BASIC transcutaneous monitor

Transcutaneous blood gas monitor for sleep diagnostics

  • Request info
    Get in touch to learn more about the TCM5 BASIC monitor
    Contact Info
    Workplace Details

    By submitting this form, I acknowledge that I have reviewed and understood the data privacy notice.

    All fields must be filled!

  • Download brochure
    Sign up to access the TCM5 BASIC brochure
    Contact Info

    By submitting this form, I acknowledge that I have reviewed and understood the data privacy notice.

    All fields must be filled!

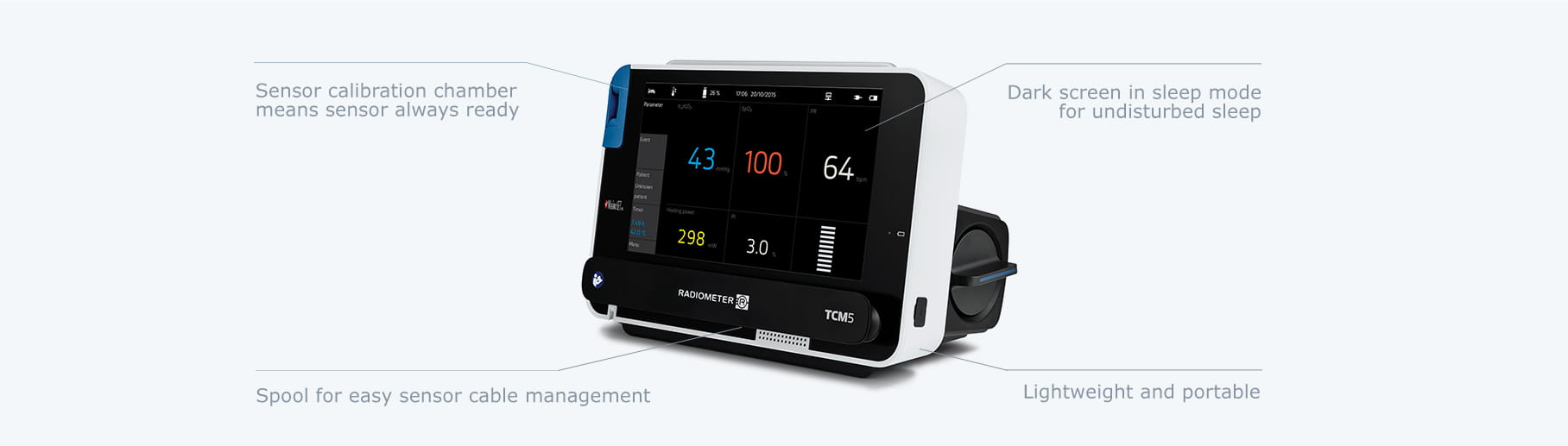

  • Simple to use
  • Dark screen and noise-free
  • Highly accurate sensors

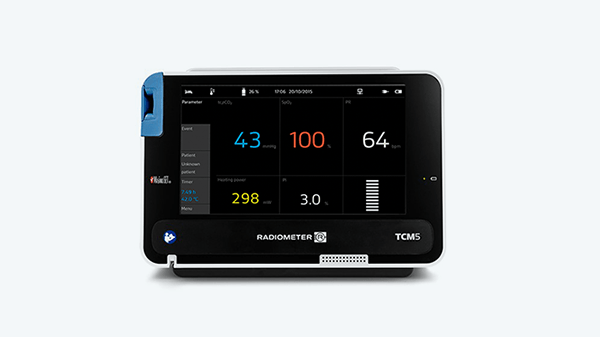

TCM5 BASIC transcutaneous monitor – ready when you are

Only available in UAE.

When it comes to sleep diagnostics, preparation is key. You want all your devices and sensors set up and working properly before the patient arrives.

The TCM5 BASIC transcutaneous monitor helps make preparation easier. Built-in tutorials and a clear, simple user interface simplifies set up, usage and troubleshooting.

Automatic sensor calibration reduces preparation time, supporting your workflow in the sleep lab.

Click me

Parameters

Pulse Oximetry:
Pulse
The rhythmic dilation of an artery that results from beating of the heart. Pulse rate is the rate at which the heart beats per minute (bpm). The measurement is based on the optical detection of a peripheral flow pulse. The volume of arterial blood in the tissue (and hence, the light absorption by that blood) changes during the pulse. This is also known as plethysmography.
, SpO2

Oxygen saturation, reported as a percentage of oxyhemoglobin (HbO2) on a total of oxy- and deoxy-hemoglobin. It is expressed by the formula: HbO2 / (HbO2+deoxyhemoglobin). It is measured non-invasively by pulse oximetry, an absorption-based technique. The relationship between SpO2 (measured by pulse oximetry) and pO2 is given by the oxygen dissociation curve.

Transcutaneous blood gas:
tcpCO2

Transcutaneous partial pressure of CO2 (carbon dioxide)

tcpCO2 is measured through a sensor placed on the skin surface. A tcpCO2 sensor uses the Stow-Severinghaus principle. CO2 reacts with water and forms carbonic acid and dissociates into H+, which is interpreted through a pH glass element. After conversion, the sensor algorithm generates a tcpCO2 in mmHg (millimeters of mercury) or kPa (kilopascals)


Close

TCM5 BASIC transcutaneous monitor – at work even in the dark

With a dedicated sleep mode and optional dark screen, the TCM5 BASIC monitor operates in complete darkness. Patients can sleep undisturbed, helping to facilitate accurate measurements.

A transcutaneous monitor delivering advanced connectivity and reporting features

The TCM5 BASIC transcutaneous monitor connects to major patient monitoring systems and polysomnographs enabling you to store, share and manage data and reports.

You can download patient data results to a PC or export them via USB with the integrated data memory that stores up to one year of continuous recorded data.

Connect your TCM5 device and see patient data on one screen 

Connectivity 

The ability to connect your TCM5 device to multiple systems means you can see TCM data and other patient data on one screen. Plus, all recordings and data can be collected in one system for later analysis.

Connectivity options

Your TCM5 device connects to a wide range of patient monitoring systems, data management systems, polysomnography systems, and ventilators. Discover all the devices that are compatible with your TCM5 and connect your device today.
See the connectivity options here (pdf)

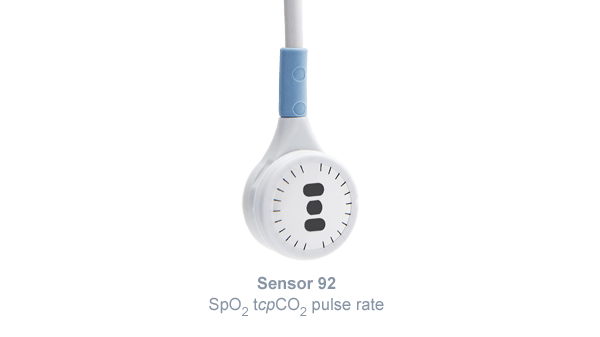

Accurate results with transcutaneous sensor

The surgical steel protected sensor offers reliable results even after prolonged use. Re-membraning needed every 28 days, freeing up valuable time for clinicians.

New for 2022: Improved sensor head design with better protection of the cable and greater pull strength.

No click me

Continuous and non-invasive transcutaneous recording throughout the night

The TCM5 BASIC monitor records tcpCO2, SpO2, and pulse rate continuously all night.

Transcutaneous monitoring plays a very important part in making adjustments of invasive and non-invasive ventilator settings for nocturnal monitoring of ventilation status.

- Doctor Raffaele Piumelli, Medical Director Sleep Lab Department Meyer Children’s Hospital Florence, Italy

Related products and solutions

TCM5 FLEX monitor

Continuously monitor tcpO2, tcpCO2, SpO2 and pulse rate in NICU and in adult and pediatric ICUs.
More information
Performing a blood test on a baby foot with a clinitube

CLINITUBES and safeCLINITUBES capillary tubes

Specially designed capillary tubes in plastic with rounded ends to increase safety for patients and staff.
More information
MAPSSS-000163 R3
